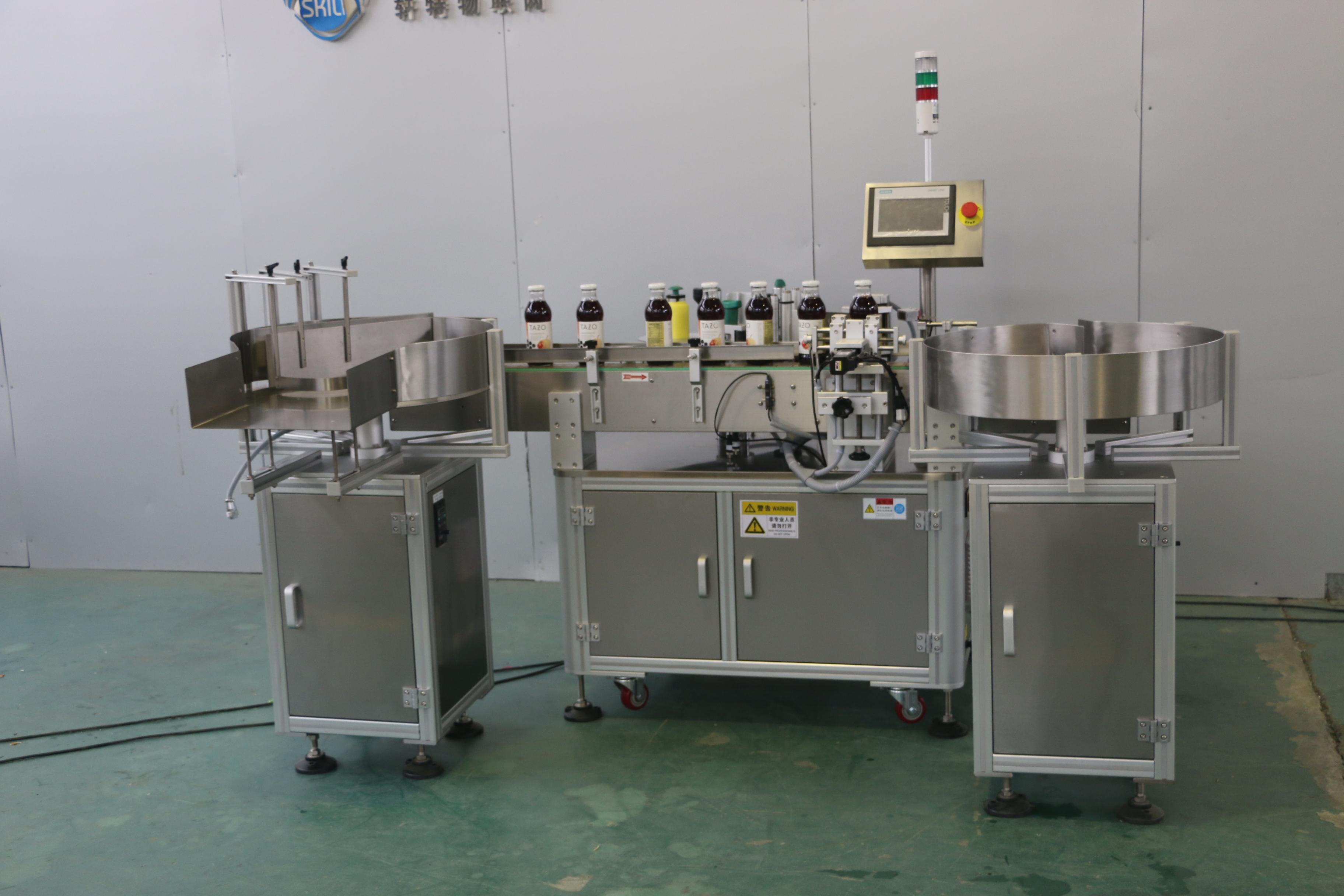

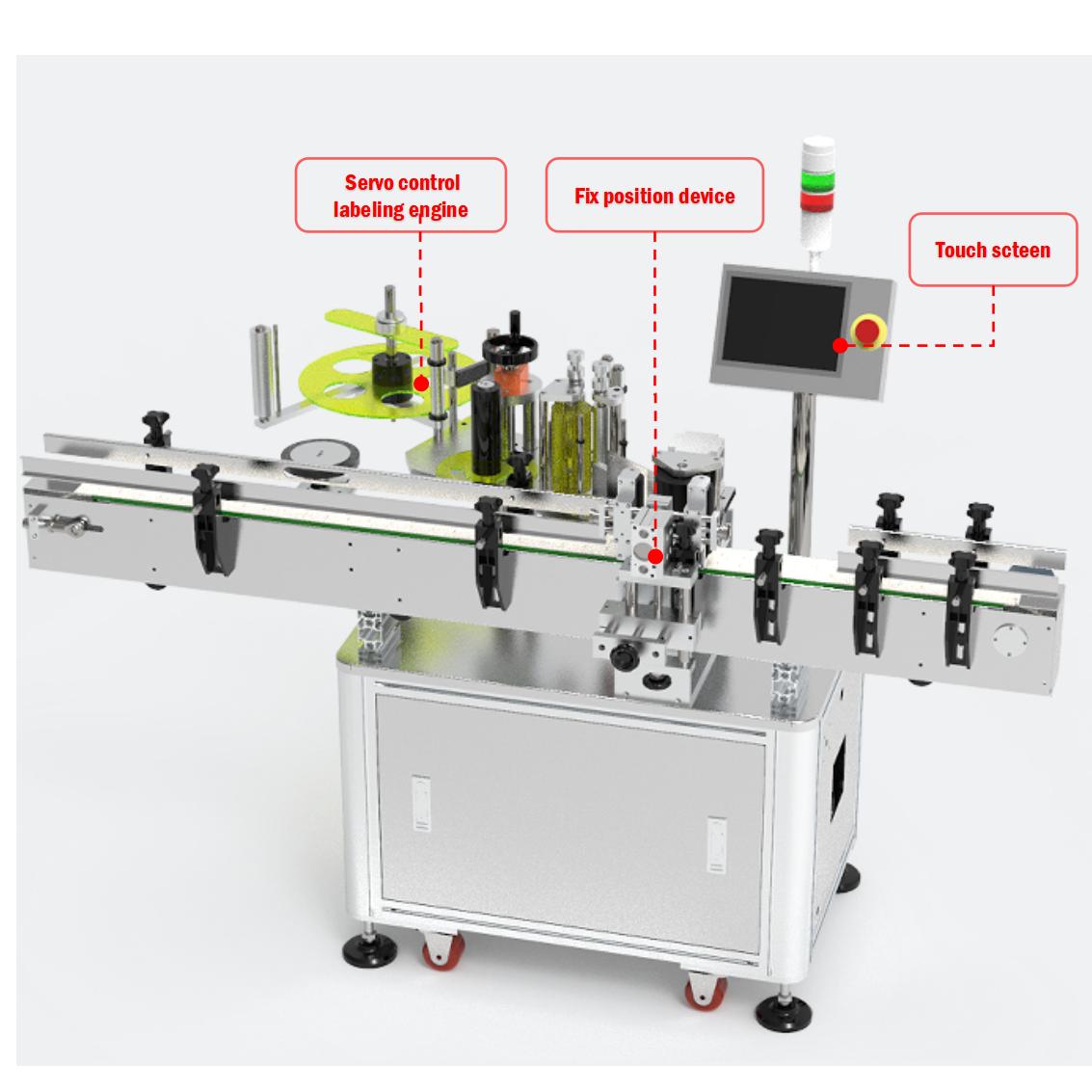

Fix special position labeling machine

Model : PLM-FX

Capacity ：20-65pcs/min

Application: Round bottle,jars,cans,Cylinder

Labeling position:

1. On product surface special position ;

2. Labeling around with rather high labeling accuracy ;

Machine size: 1800x800x1300mm

Voltage : 110V/220V/380V

Control system : Step & Servo & German NOVEXX for choose

Optional device : Printer, Turntable ,Working table plate

Customize : Machine conveyor and size can made as client need

Email us

Overview
Video
Parameter
Electrical Brand
Related Products

The FXP series labeling suitable situation:

● Labeling on each bottle surface at same position ;
● One label cover on the first label surface ;
● Labeling whole wrap-around ,with high requirement for labeling accuracy ;

Parameter

Model	PLM-DS & PLM-DS-ALS204
Driving Mode	Servo motor & German NOVEXX
Yield（pcs/min）	10-60 (depends on bottle and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	H: 10-150 mm L: 10-300 mm
Suitable bottle size	Dia: 28-100mm，H: 30-260mm
Printer use air	5kg/cm ²
Voltage (can customized)	110V/220V/380V
Power（w）	650W
Machine size	1800（L） 800 (W) 1300 (H) mm

Electrical Brand

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	PLC	SIEMENS
3	Servo motor and driver	Panisonic & German NOVEXX
4	Sensor (check bottle)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Inverter	DELTA
7	Separate bottle motor	German JSCC
8	Fix position motor	YAKOTEC
9	Conveyor motor	German JSCC
