Pen marker crayon labeling machine
Model :PWM-A
Capacity ：50-200pcs/min
Application: Pen & marker & crayon
Labeling position: wrap around
Control system : Step& Servo& German novexx
Machine size : 1800（L） 800 (W) 1350 (H) mm
Voltage : 110V/220V/380V

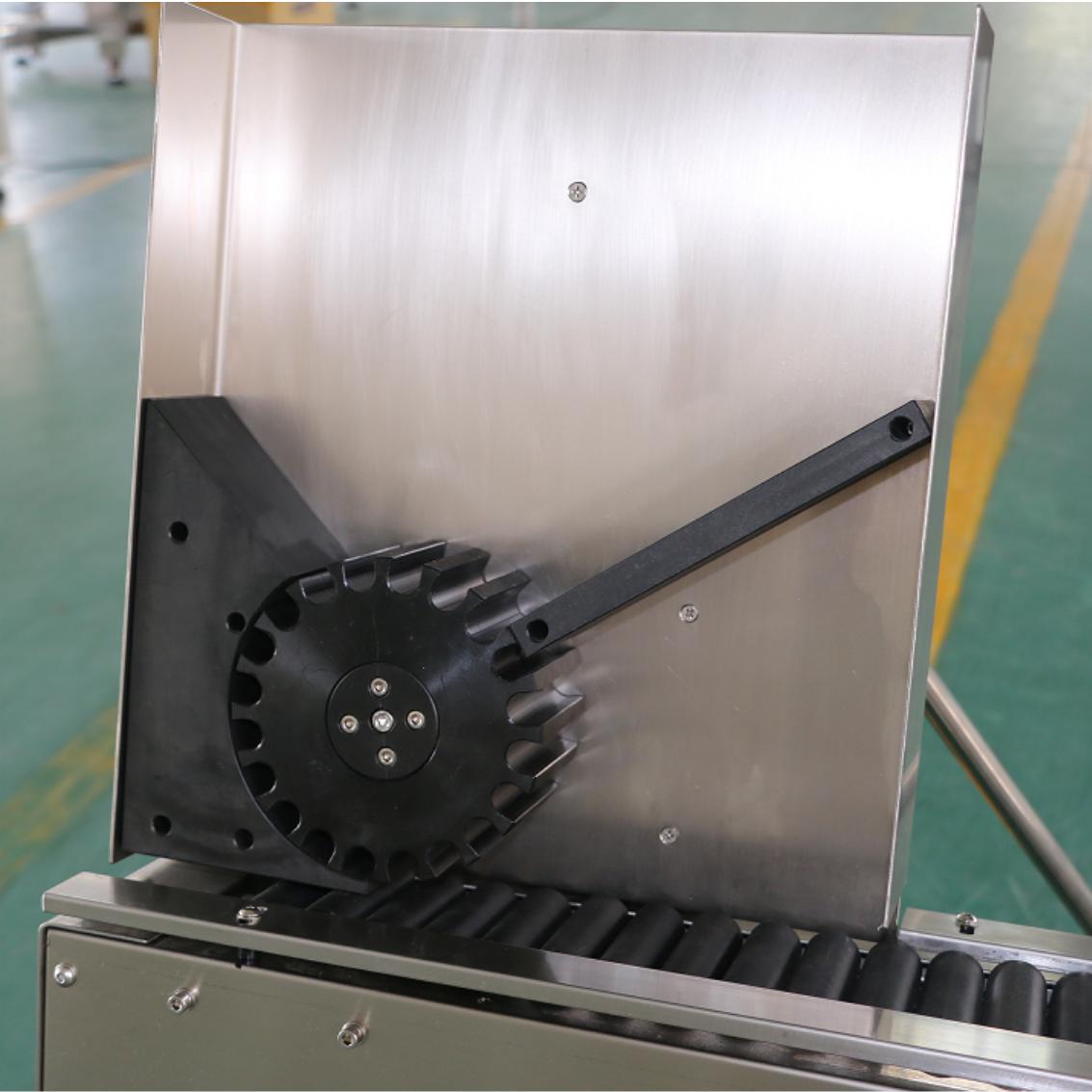

Machine with different kind feeding device can choose.
Customized depends on client labeling objects size.
- Overview
- Video
- Parameter
- Electrical Brand
- Related Products

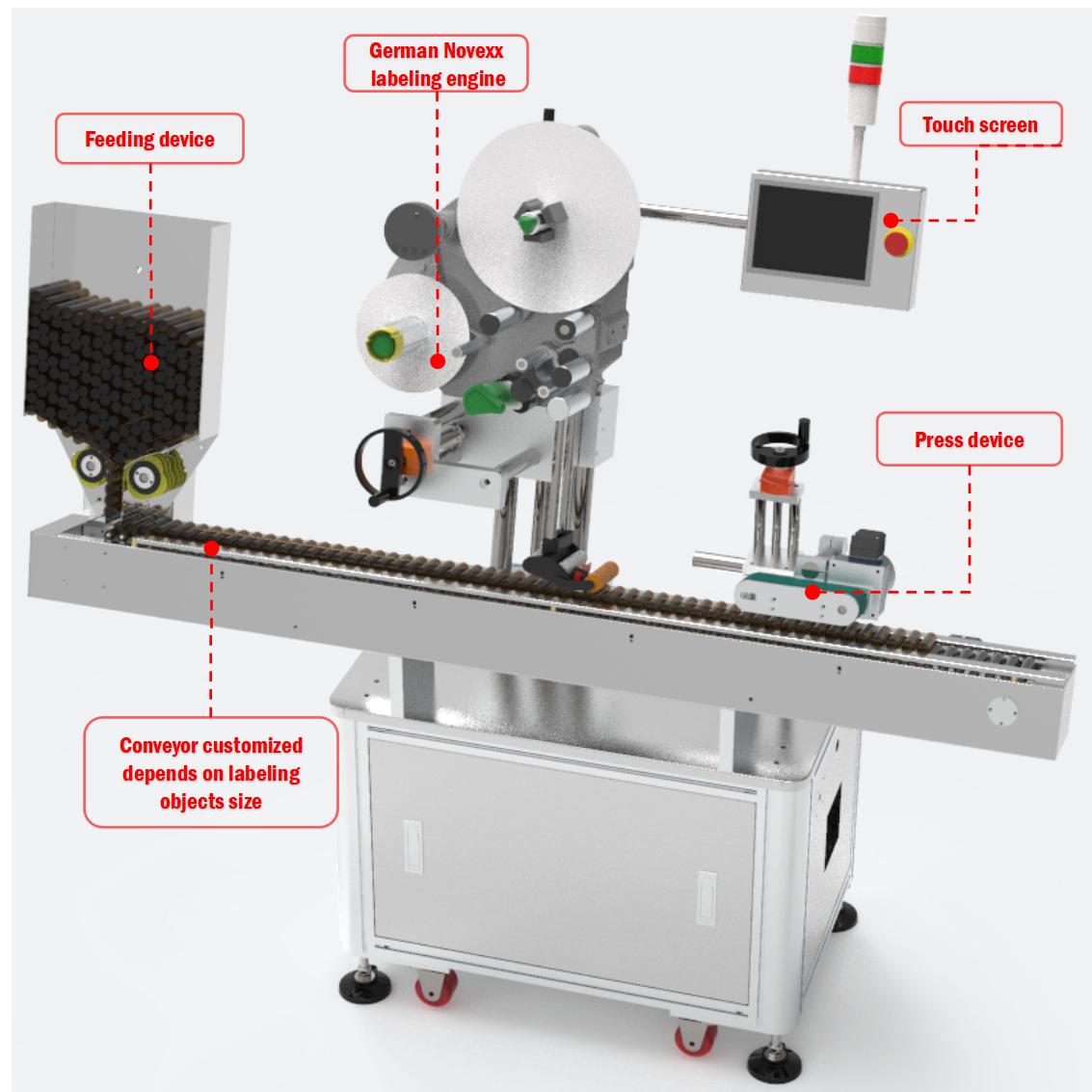

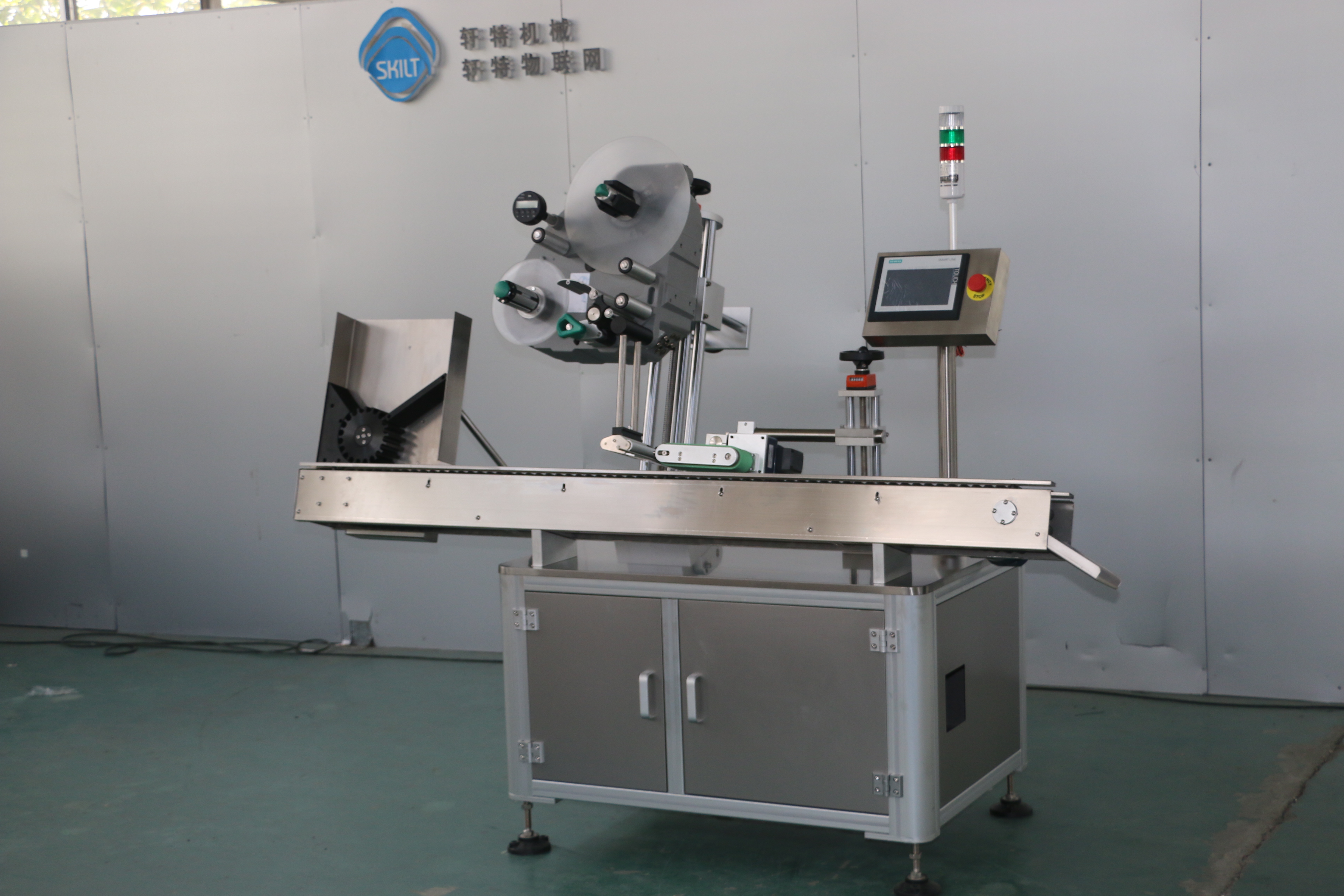

SKILT PWM series is the horizontal way pen labeler, marker labelling , crayon labeling machine, conveyor will customized depends on client product shape and size. With the Servo motor labeling engine and German NOVEXX labeling engine for choose.
Parameter
| Model | PWM-A |
| Driving Mode | Servo motor |
| Yield（pcs/min） | 50-400 (depends on tube and label size) |
| Operating direction | Left or Right |
| Labeling Accuracy | ±1.0 mm |
| Inner diameter of label roll | 76 mm |
| Outer diameter of label roll | 350 mm(max) |
| Suitable label size | L:10-100mm，H:10-150mm |
| Suitable labeling object size | Diameter: 10-30mm |
| Printer use air | 5kg/cm ² |
| Voltage (can customized) | 110V/220V/380V |
| Machine size | 1800（L） 800 (W) 1300 (H) mm |
Electrical Brand
| No | Name | Brand |
| 1 | HMI (Touch screen) | SIEMENS |
| 2 | PLC | SIEMENS |
| 3 | Servo motor and driver | Panisonic |
| 4 | Sensor (check labeling object) | Japan KEYENCE |
| 5 | Sensor (check label) | German LEUZE |
| 6 | Roll label motor | German JSCC |
| 7 | Conveyor motor | German JSCC |
