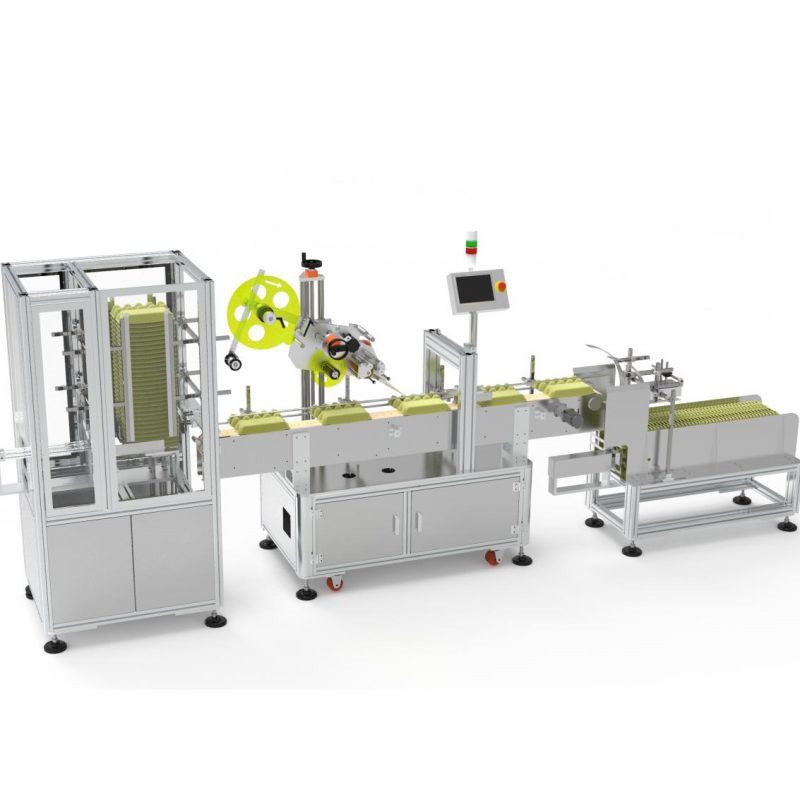

Egg Box labeling machine l Egg tray label applicator
The egg carton labeling machine is a stand-alone intermittent motion labeling system designed for
mid-speed of self-adhesive sticker labels affixed onto plastic/paper egg cartons.

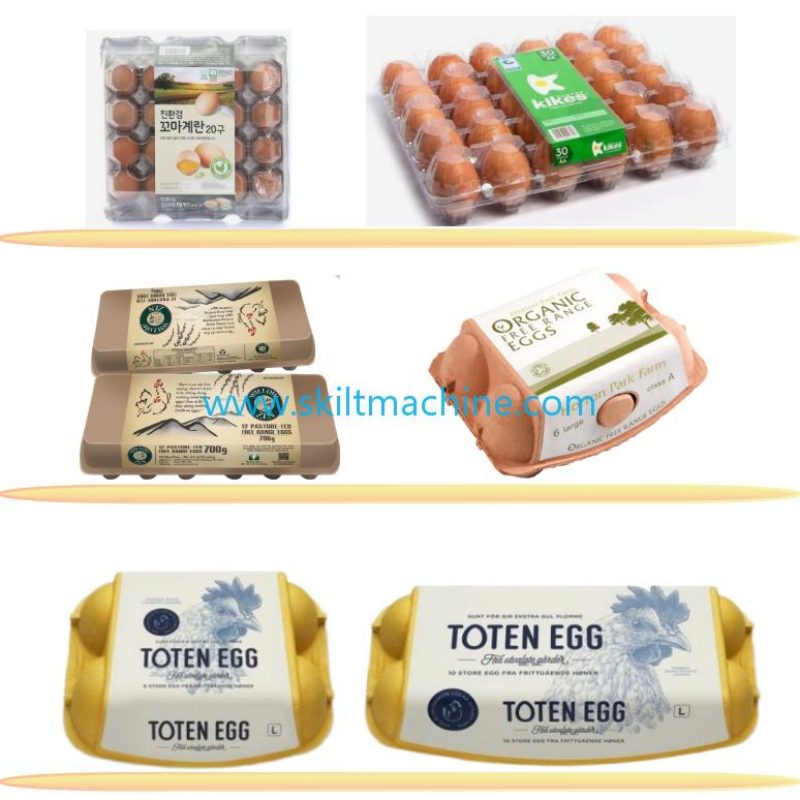

Special for recycled Paper Pulp Egg Carton / Box / Tray
12 count tri-fold, 12 count bi-fold
18 count bi-fold, and 24 count bi-fold

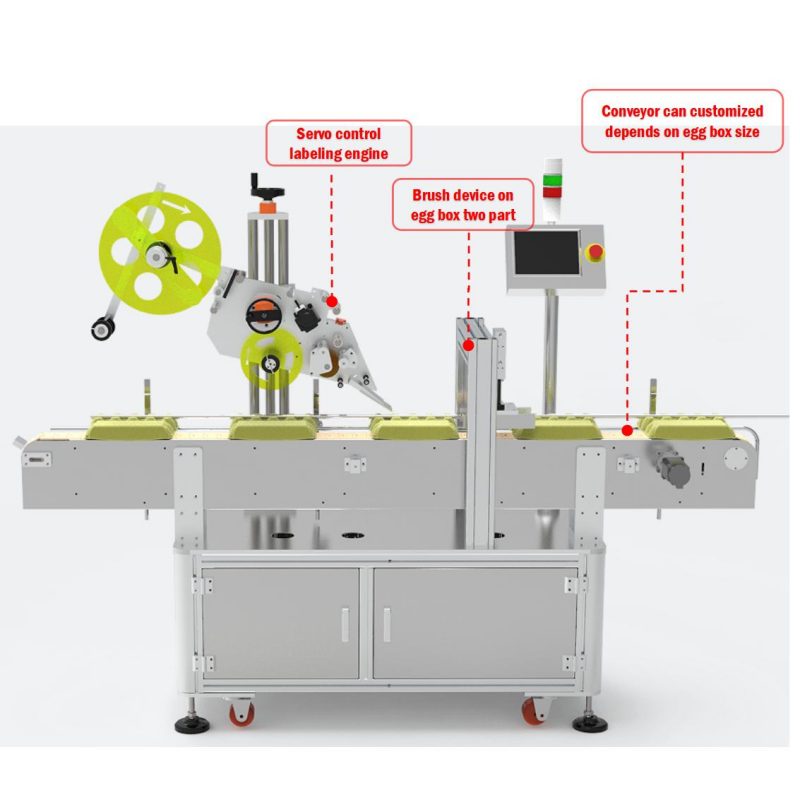

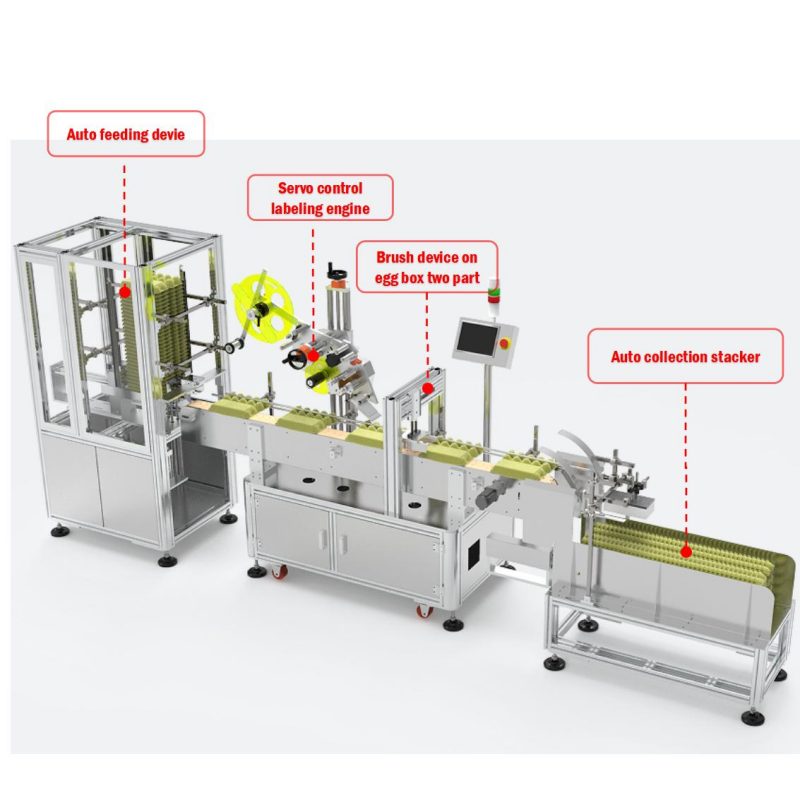

Machine Features
1. Stacked Egg Trays Feeding Automatically
2. Egg Trays Automatic Transportation System
3. Products Position-Setting Automatically
4. Labeled Products Automatic Stack Collecting System

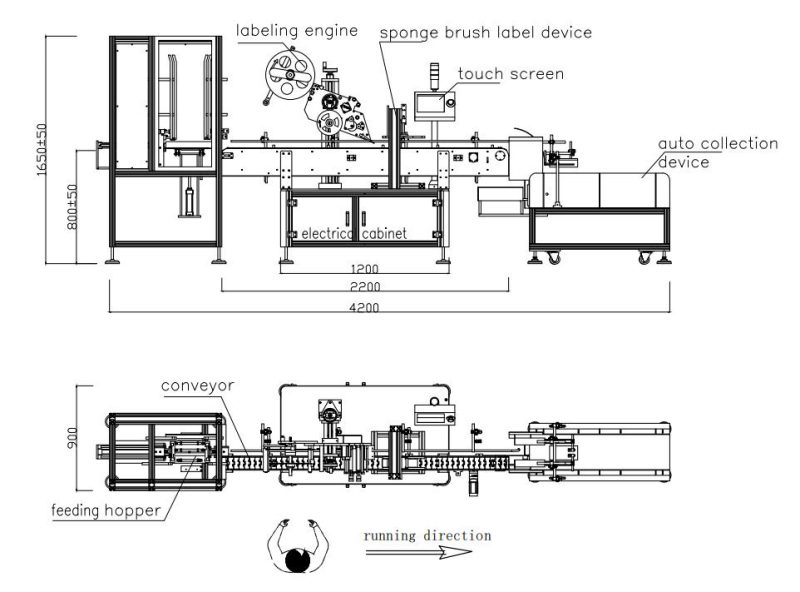

Machine Sketch Map
Parameter
| Model | DPM-ELM-A |
| Driving Mode | Servo control system |
| Yield(pcs/min) | 20-70 (depends on egg box and label size) |
| Operating direction | Left or Right |
| Labeling Accuracy | ±1.0 mm |
| Inner diameter of label roll | 76 mm |
| Outer diameter of label roll | 350 mm(max) |
| Suitable label size | W: 10-150 mm L: 10-300 mm |
| Suitable egg box size | Can customized |
| Printer use air | 5kg/cm ² |
| Voltage (can customized) | 110V/220V/380V |
| Machine size | 4200(L)900 (W) 1600 (H) mm |
Electrical Brand
| No | Name | Brand |
| 1 | HMI (Touch screen) | SIEMENS |
| 2 | programmable control (PLC) | SIEMENS |
| 3 | Labeling engine servo motor and driver | Panisonic |
| 4 | Servo motor and driver(400W) | American AB |
| 5 | Servo motor and driver(750W) | American AB |
| 6 | Sensor (check egg box) | Japan KEYENCE |
| 7 | Sensor (check label) | German LEUZE |
| 8 | Inverter | DELTA |
| 9 | Conveyor motor | Switzerland ABB |
